HD Surveillance Systems
Camera System Lineup
Explore our comprehensive range of high-definition security cameras, recorders, and smart AI video analytics.
Recording & NVR Equipment
Enterprise-grade Network Video Recorders designed for continuous 24/7 ultra-high-definition storage and smart AI video analytics.
8-Channel PoE NVR Recorder
- Power over Ethernet (PoE): Built-in 8-channel (802.3at compliant)
- Audio Input: 1 RCA
- Hard Drives: 1 SATA Interface
- Video Output: 1-CH VGA, 1-CH HDMI
- Recording Resolution: 8MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF

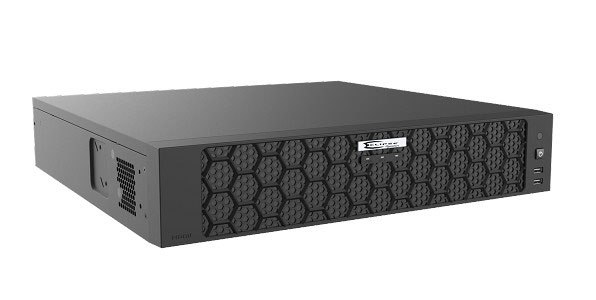

ESG-NVR16-4RF NVR Recorder
- Smart AI Analytics: Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD), Video Metadata, Plate Comparison, People Counting, and Face Detection by NVR
- Audio Input: 1 RCA
- Hard Drives: 4 SATA Interfaces for massive storage capacity
- Video Output: 3-channel HDMI, 1-channel VGA outputs (simultaneous & independent outputs supported)
- Real-Time Decoding: 6 x 4K @ 30fps, 8 x 6MP @ 30fps, 10 x 5MP @ 30fps, 12 x 4MP @ 30fps, 16 x 3MP @ 30fps, 16 x 1080P @ 30fps
- Recording Compression: High-efficiency H.265 video compression
Dome Cameras
Low-profile, vandal-resistant dome cameras ideal for ceiling installations in offices, corridors, and customer-facing areas.
ECL-IP2TN Dome Camera
- Power Input: 12V DC or PoE (IEEE 802.3af)
- Operating Temperature: -25°C to 55°C / -13°F to 131°F
- Infrared (IR) Range: Up to 98ft night vision
- Lens: 2.8mm HD fixed wide-angle lens
- Resolution: 2MP (Max 1080p high-definition)
ECL-IP8TN 4K Dome Camera
- Power Input: 12V DC or PoE (IEEE 802.3af)
- Operating Temperature: -25°C to 55°C / -13°F to 131°F
- Infrared (IR) Range: Up to 98ft night vision
- Lens: 2.8mm HD fixed wide-angle lens
- Resolution: 8MP - Ultra HD 4K clarity
ESG-IPDMC4F2 Dome Camera
- Power Input: 12V DC or PoE (IEEE 802.3af)
- Night Vision: Full Color at Night technology
- Advanced Analytics: Face detection, Crossline detection, Enter area detection, Leave area detection, Intrusion detection, Motion detection, Tamper alarm, Audio detection
- Lens: 2.8mm HD fixed lens
- Resolution: 4MP high-definition
Bullet Cameras
Highly visible, weather-proof bullet cameras designed to deter intruders and secure perimeters, gates, and outdoor areas.

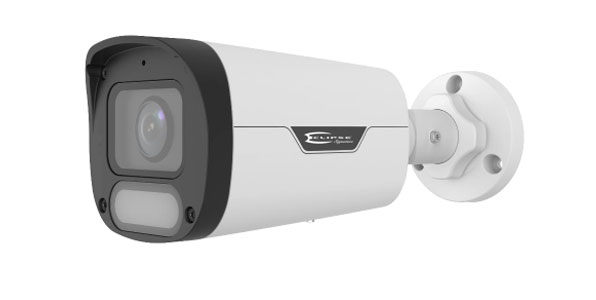

ESG-IPBMC4F2 Bullet Camera
- Power Input: 12V DC or PoE (IEEE 802.3af)
- Infrared (IR) Range: Up to 98ft night vision
- Advanced Analytics: Face detection, Crossline detection, Enter area detection, Leave area detection, Intrusion detection, Motion detection, Tamper alarm, Audio detection
- Lens: 2.8mm HD fixed lens
- Resolution: 4MP high-definition
Panoramic Cameras
Wide-angle panoramic and fisheye cameras that provide full 180° or 360° situational awareness with zero blind spots.

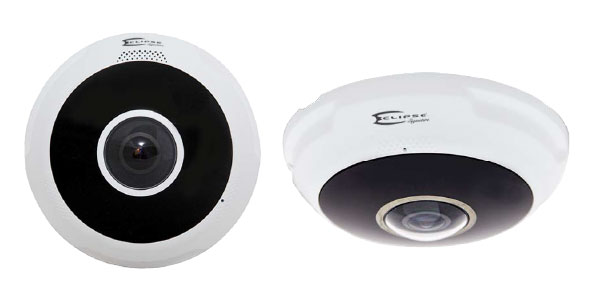

ESG-IPF812 Panoramic Camera
- Power Input: 12V DC or PoE (IEEE 802.3af)
- Operating Temperature: -35°C to 60°C / -31°F to 140°F
- Day/Night Function: IR-cut filter for automated day and night switching
- Lens: 1.8mm panoramic fisheye lens
- Resolution: 12MP Ultra-HD (4000 x 3000)
PTZ (Pan-Tilt-Zoom) Cameras
Powerful motorized cameras with pan, tilt, and optical zoom capabilities to track targets across massive outdoor areas.

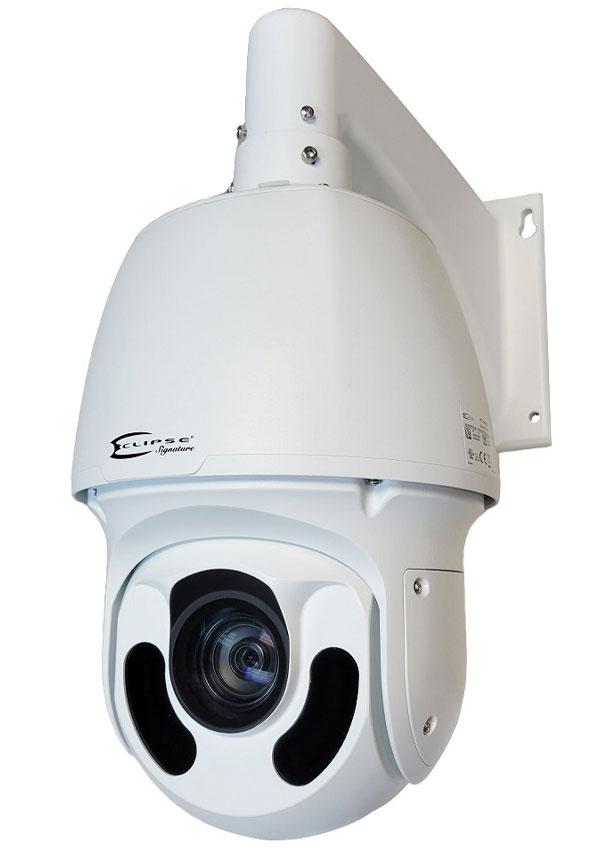

ESG-IPS433X-I PTZ Camera
- Power Input: AC 24V, DC 24V, or PoE+ (IEEE 802.3at)
- Operating Temperature: -40°C to 70°C / -40°F to 158°F
- Infrared (IR) Range: Up to 492ft night vision
- Optical Zoom: 30x optical zoom for extreme closeups
- Lens: 4.5mm – 135mm motorized lens
- Resolution: 4MP high-definition

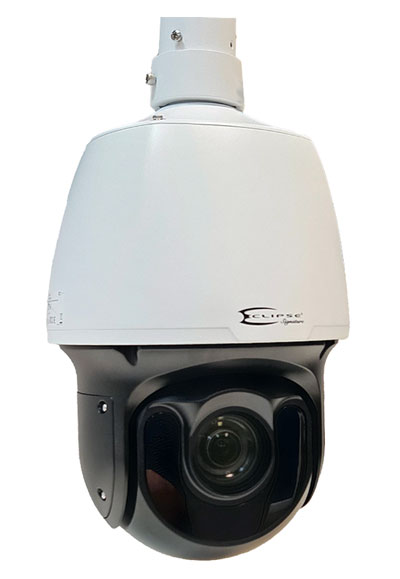

8MP PTZ Model Camera
- Power Input: 24VDC, 24VAC, or PoE+ supported
- Operating Temperature: -40°F to 158°F (-40°C to 70°C)
- Infrared (IR) Range: Up to 656ft long-range night vision
- Optical Zoom: 25x optical zoom
- Lens: 6mm – 150mm motorized lens
- Resolution: 8MP - Ultra HD 4K clarity
Smart Video & Automation Cameras
HD Wi-Fi smart cameras and doorbells integrated directly with Resideo Total Connect 2.0 remote monitoring.
VX1 / CAMW-WDB HD Wi-Fi Video Doorbell
- Supports motion alerts and high-quality two-way audio communication
- Provides clear view of entryways and visitor interactions
- Requires Total Connect 2.0 remote subscription
- HD Wi-Fi video doorbell
IPCAM-WOC2 HD Wi-Fi Outdoor Video Camera
- Supports motion-triggered recording and remote streaming
- Weather-proof housing for reliable outdoor performance
- Requires Total Connect 2.0 remote subscription
- HD Wi-Fi outdoor video camera
CAMW-WO / VX3 HD Outdoor Video Camera
- Advanced night vision and motion alerts
- High-definition clarity and durable build
- Requires Total Connect 2.0 remote subscription
- HD outdoor video camera
CAMW-WI / VX5 HD Indoor Video Camera
- Wide-angle lens with crystal clear live feed
- Compact profile for bookshelf, counter, or wall mounting
- Requires Total Connect 2.0 remote subscription
- HD indoor video camera
