Fire Alarm System
Commercial Fire Alarm Control Panel
Fire alarm system help protect people and property through early detection, emergency alerts, and reliable monitoring. Solutions can include smoke detectors, heat detectors, notification devices, and fire safety system integration.
COMMERCIAL LIFE SAFETY

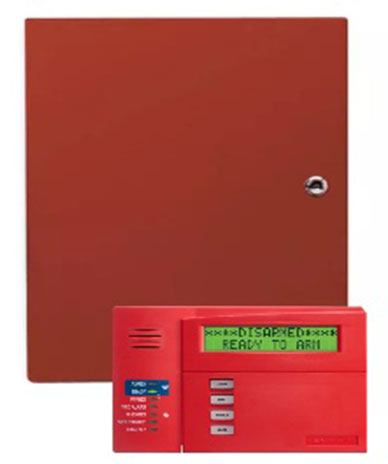

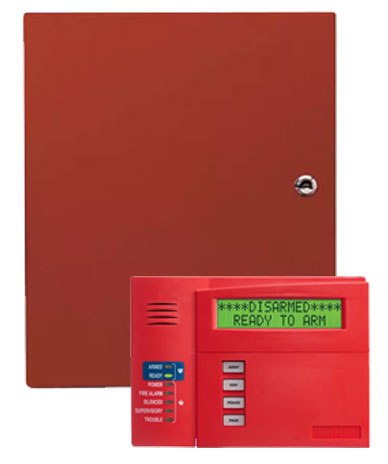

VISTA-128FBPT Commercial Fire & Burglary Alarm Control Panel
The V128FBPT fire and burglary alarm control panel provides advanced protection for life and property. It supports up to eight partitions and 128 zones or points using hardwired, wireless, and V-Plex® addressable technologies. The panel is suitable for fire-only applications, as well as installations requiring integrated fire and burglary protection. It is an ideal solution for medical and professional office buildings, churches and synagogues, banks, schools, strip malls, factories, and warehouses.
Features & Benefits:
- 8 hardwired zones standard, expandable to 128 using V-Plex® addressable points/zones
- Supports up to 128 wireless zones (fewer if using hardwired and/or V-Plex zones)
- Can control eight separate areas independently (eight partitions)
- Common lobby partition – auto arm or disarm based upon assigned partitions
- Master partition – used for viewing status of all partitions
- Supports commercial wireless fire and burglary devices
- Stores up to 512 events
- Accommodates 150 user codes and up to 250 access card holders using VISTAKEY®
- Supports V-Plex addressable VISTAKEY access control (one to eight doors)
- Two onboard NACs delivering a total of 2.3A at 12V

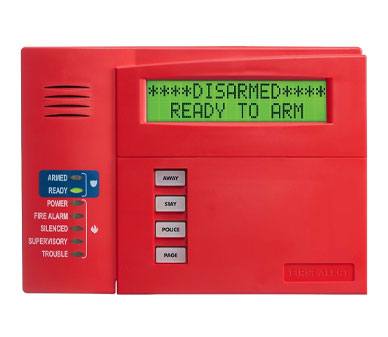

- 6160CR-2 Light Commercial Fire Alpha Keypad: The 6160CR-2 keypad provides convenient system control and clear status information for commercial fire alarm applications. Its large, easy-to-read display shows important system messages, while backlit keys and status indicators improve visibility and operation. It also includes a built-in sounder and four programmable function keys for fire, security, and emergency functions.
Certifications:
- UL864/NFPA72 Local, Central Station and Remote Station
- UL1076: Proprietary Burglar Alarm Units and Systems
- UL1610: Central Station Burglar Alarm Units
- UL1635: Digital Alarm Communicator System Units
- UL365: Police Station Connected Burglar Alarm Units and Systems
- UL609: Local Burglar Alarm Units and Systems
- UL985: Household Fire Warning System Units
- UL1023: Household Burglar Alarm System Units
- California State Fire Marshal (CSFM)
- FDNY Certificate #6140
